What is a Pneumatic Actuator? | Types & Applications

 Actuators make life simpler for us consistently, and they are the workhorses of the business. For instance, your dental specialist utilizes an actuator to move the seat all over.

Kinds of actuators by their energy source


There are three regular kinds of actuators utilized in the industry as characterized by their energy source.


The normal actuators in the business include:


- Electric


- Water-powered


- Pneumatic


Alright… Let's continue toward the focal point of our article, the pneumatic actuator. A pneumatic actuator changes over energy as compacted air develops.


Kinds of actuators by their movement


Pneumatic actuators are ordered by their sort of movement. They are either Linear or Rotary.


A direct pneumatic actuator can move something in an orderly fashion. For instance, a pole is moved all through a chamber in direct movement by a pneumatic energy source.


A rotational pneumatic actuator can make something move in a roundabout movement. For instance, a pole in a rack and pinion drive framework is utilized to deliver rotational movement.


How about we take a gander at certain instances of how Rotary and Linear pneumatic actuators are worked as there are various kinds of each.


1) Rotary pneumatic actuator


In the Rotary pneumatic actuator classification, the Vane style and the Rack and Pinion style are extremely normal.


1-1) Vane Actuator


Vane Actuators have a tube-shaped chamber wherein a mobile vane is mounted on a shaft. Pneumatic air under tension applied on one side of the vane makes it turn through its stroke.

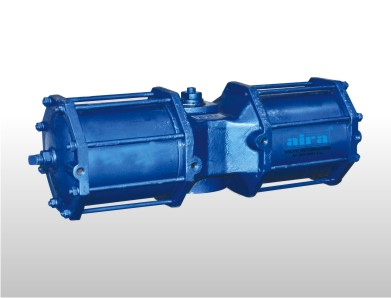

1-2) Rack and pinion


Rack and Pinion actuators utilize a cylinder connected to rack gear. Whenever pneumatic tension is applied, the cylinder and rack move directly turning the pinion stuff and driveshaft.


2) Linear pneumatic actuator


In the Linear pneumatic actuator classification, the spring/stomach style and the cylinder style are extremely normal.


2-1) Piston


The cylinder-style pneumatic actuator uses a cylinder inside a chamber. The development of the cylinder is brought about by applying pneumatic strain subsequently moving the cylinder upwards.


Eliminating the pneumatic tension makes the cylinder move descending because of the strain of the spring. This movement is alluded to as Air-to-Retract.


An Air-to-Extend movement can likewise be accomplished by reworking the spring, cylinder, and pneumatic stockpile.


2-2) Spring/stomach


The spring/stomach pneumatic actuator is likely the most well-known actuator used to work modern interaction control valves. In this way, we should have a more intensive look.


The spring/stomach pneumatic actuator comprises a stomach and plate that are associated with an actuator stem. An adaptable stomach is encased in pressure-tight lodging.


Pneumatic tension enters this lodging applying strain to the stomach. As the gaseous tension increments to the stomach, the power applied against the spring increments causing the actuator stem to move.


Diminishing the pneumatic tension will make the spring withdraw from the stomach.


The actuator stem will move a valve in or out of a valve body.


In an air-to-open working condition, the spring powers the valve shut.


The pneumatic stress on the stomach makes a power that conquers the power of the spring and opens the valve.


Pneumatic actuator in action


We should take a gander at a commonplace spring/stomach pneumatic actuator associated with a stream control valve in real life!


The PLC simple result card delivers a 4 to 20 mA current to move the valve from completely open to completely shut.
